Renji noodle seperator

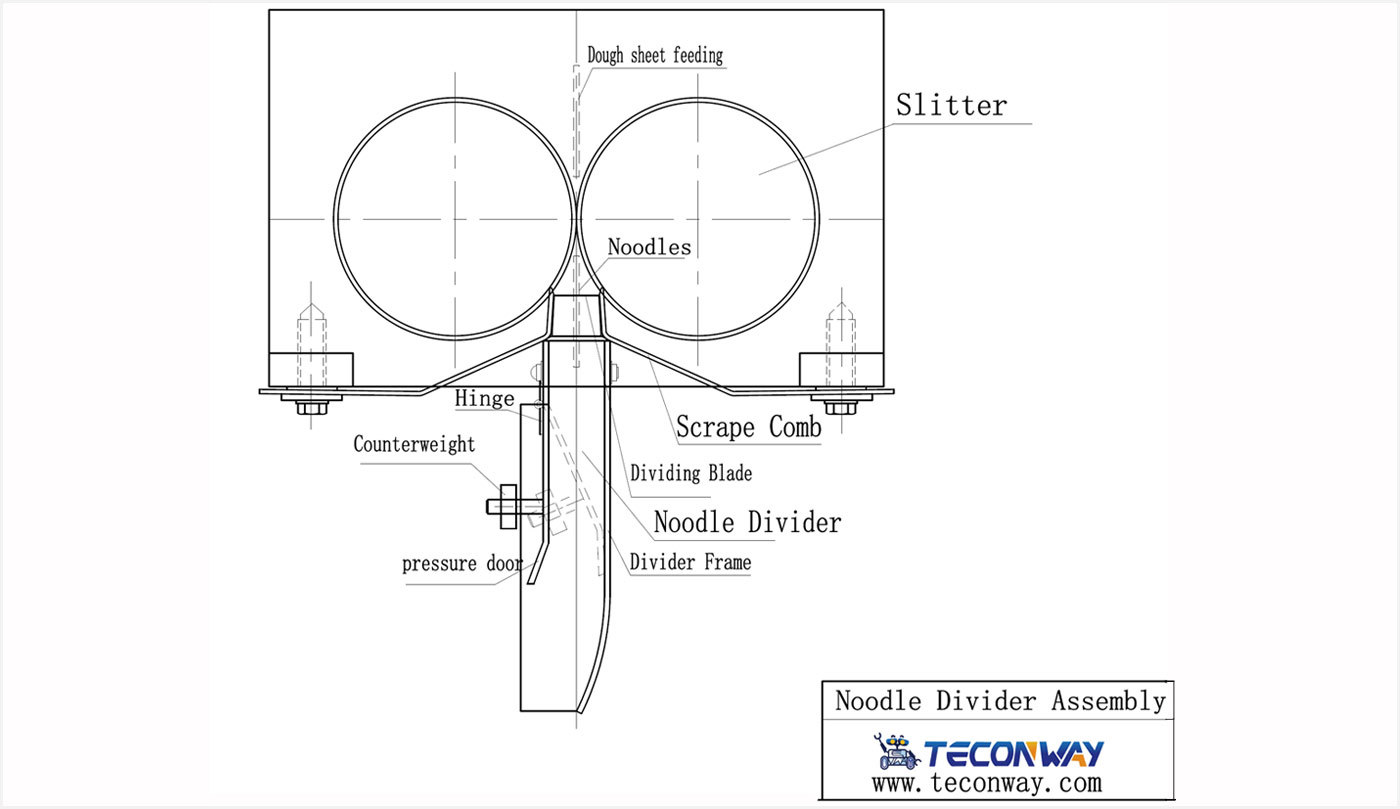

After dough sheet being slitted, the noodle divider divides the number of noodles into equal parts and fold them into wavy shape regularly. It is also named as noodle separator, shaper, shaping box, wave maker, etc.

keywords:

Product Categories

Instant Noodle Divider & Wave Maker

Email：

WhatsApp：

Visits:

Product details

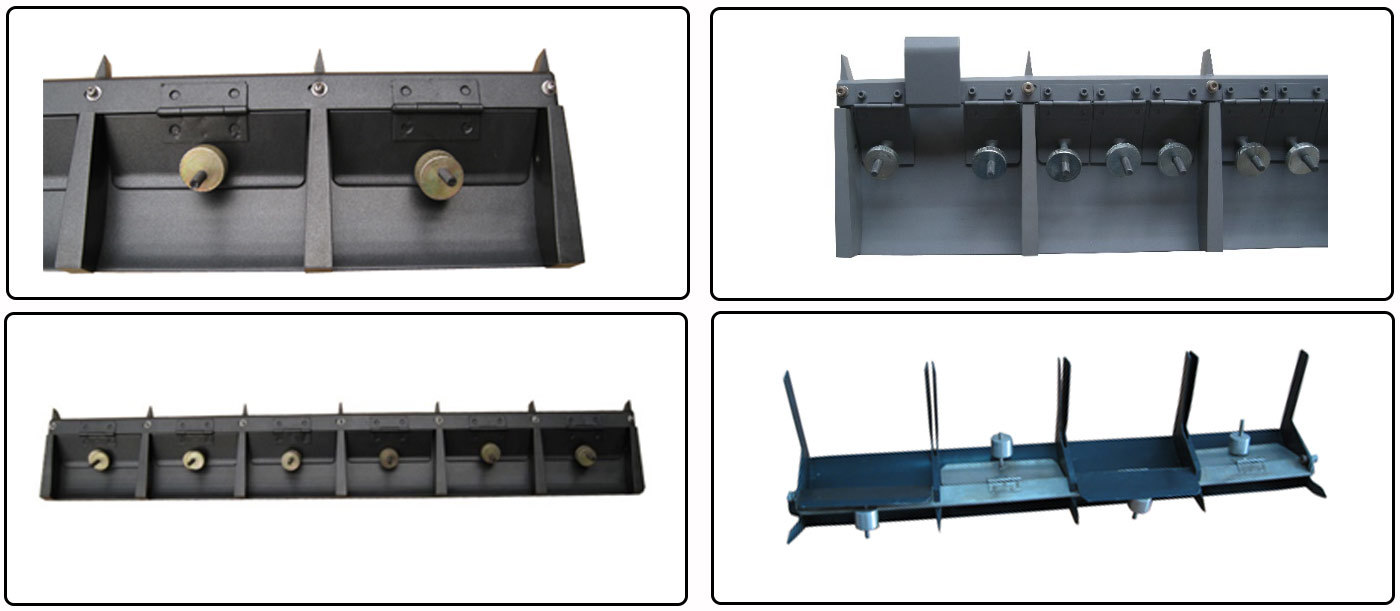

Characteristics of our noodle divider:

1)Precise and reasonable blades spacing
To make the net weight of instant noodle block consistent.
Well-designed by experienced engineers / Manufactured by CNC machines / Welded by welding robots

2)Consistent weight of counterweight blocks
To make the noodle wavy shape consistent

3)Teflon coating in case of sticking

Number	Part Name	Description	Quantity	Sequence number	Part Name	Description	Quantity
1	Rubber pad	Rubber	2	15	Pressing plate	A3	2
2	Hexagon socket M6X35	For the bumper panel	4	16	M8X16	Face comb pressing plate screws	16
3	Main knife roller	2Cr13	1	17	Finished box		1
4	Support rod	A3	2	18	Slider	A3	2
5	M6X50	Sus304 (finished box connection)	4	19	M12 nut M12 spring washer M12 flat washer		4 sets
6	Lifting ring M10	A3	2	20	Flat key	H62 (meshing gear key)	2
7	Nut M12X1.25	A3 (top wire)	2	21	Flat key	H62 (large gear key)	1
8	M12X1.25-45	A3 (top wire)	2	22	Stop block	Nylon	One pair
9	Needle roller bearing NA4906		2	23	Thrust bearing 51207		2
10	Needle roller bearing NA6906		2	24	Oil nozzle	Copper	4
11	Auxiliary knife roller	2Cr13	1
