Noodle Slitter
keywords:
Product Categories
Noodle Production Line Parts
Email：
WhatsApp：
Visits:

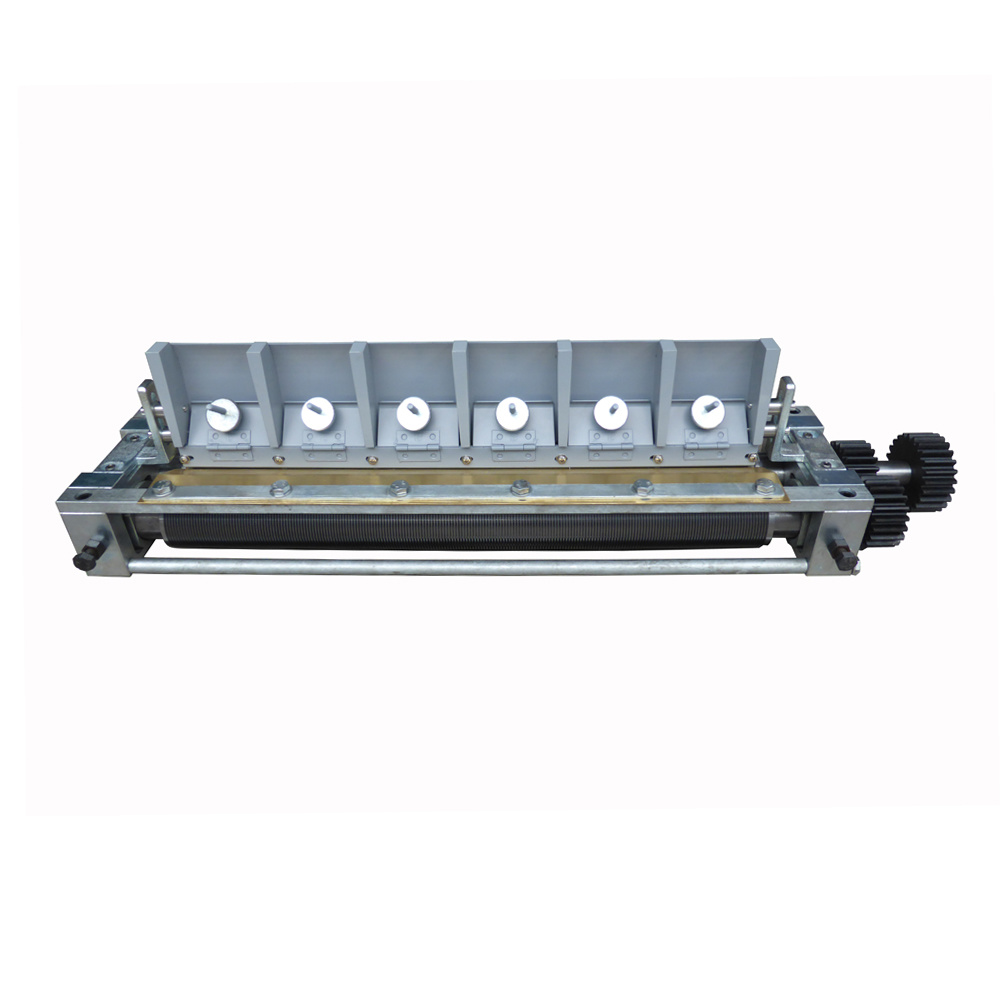

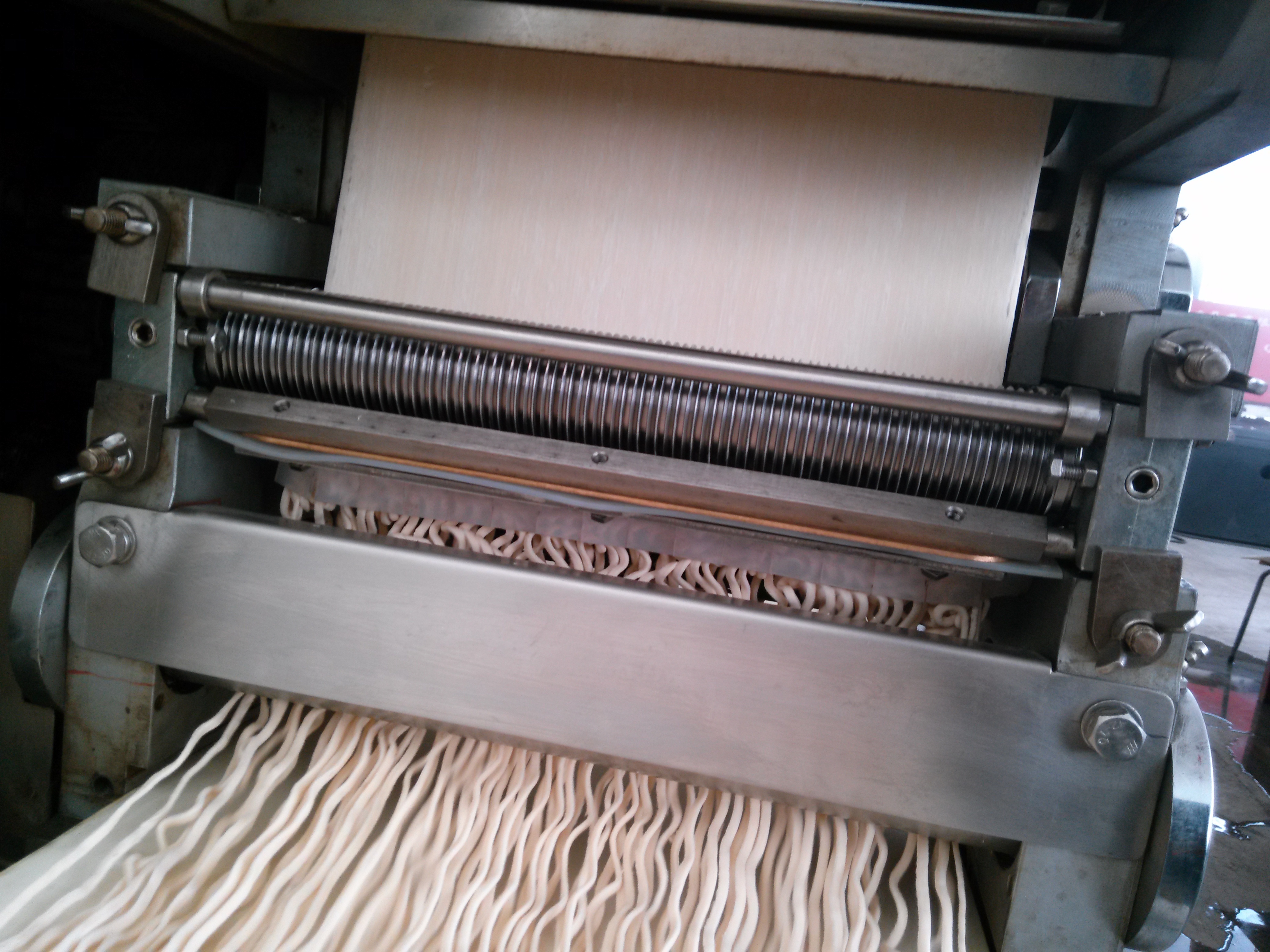

Noodle Slitter: Also named as Noodle Cutter, Noodle Shredder, Noodle Slicer. It's used to slit dough sheet into noodles. A pair or pairs of combs are installed under the slitting rollers for scraping off the cutting grooves of noodle slitter. Noodles are divided into equal amounts, and then, they are hindered by metal weights when coming out of the slitter, which gives the noodle its wavy appearance. Noodle slitting is one of the most important procedures in noodle making process. The noodle slitter plays a crucial role. The performance of noodle slitter will certainly affect the appearance, texture, and production cost of noodles.
Product Advantage

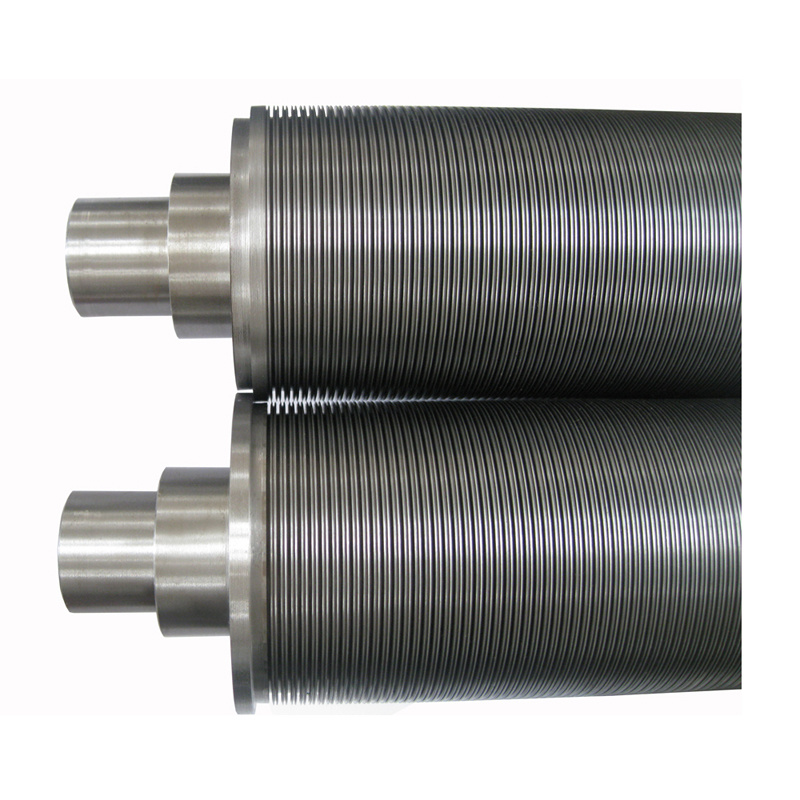

1) High precision cutting groove
Cutting noodles with precision and consistent thickness / Long service life as less friction
2) Smooth & Clean cutting groove side surface
Cutting smooth noodles without burrs or knots / Cutting surface is free from dough debris / Reducing the coking substances while frying / Improving noodles appearance and texture
) High precision scraper comb
Made by CNC wire-cut machine for perfect matching gaps between cutter grooves and comb teeth /
Made by CNC bending machine for precision and consistent bending angles, flat and straight comb teeth/
Made of bronze, stainless steel or materials specified by customer/
High wear resistance / Good elasticity / Long service life.
4) Optional gears
Carbon steel gears with heat treated to improve the surface hardness, wear resistance and extend the service life.
Oily nylon gears suitable for low speed, low load, no lubrication, high cleanliness working conditions.
5) Famous brand bearings
NSK, SKF or Customer-specified brand
PARTNER
MASAN Group
Robinhood
NONGSHIM
Mareven Food
Kaifeng Lixing Machinery
Dongfang Noodle Machine
Qingdao Zhengya Machinery Technology Co., Ltd.
Helper
BUHLER
Baixiang Food
Related Products

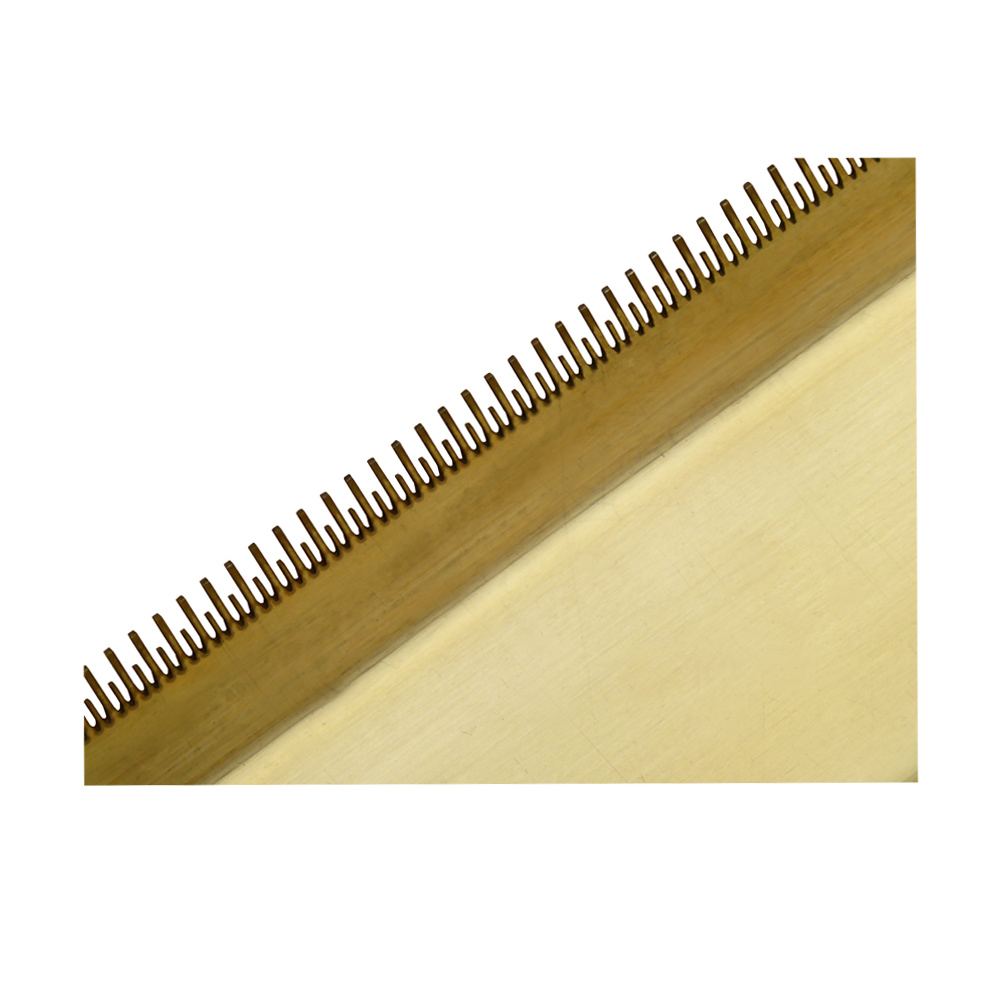

The Scraper Comb is made of metal for scraping off the cutting grooves of noodle slitter. It’s also known as noodle comb, cutter comb, slitter comb.
Mesh Belt Heat Pump Sludge Dryer
When the heat pump dryer is running，the air is circulated in the closed space composed of the drying chamber and the heat pump unit. The hot air passes through the materials to take away the water, and passes through the heat pump evaporator. The low temperature refrigerant in the evaporator absorbs heat, so that the air temperature is reduced and the water is condensed and drained. The saturated air after dehumidifying is then passed through the condenser of the heat pump, where the high heat refrigerant heats the air. And, the dry hot air blows into the drying chamber again to dry the materials. During this process, the heat pump system will be running automatically by the SCM according to the set temperature.
