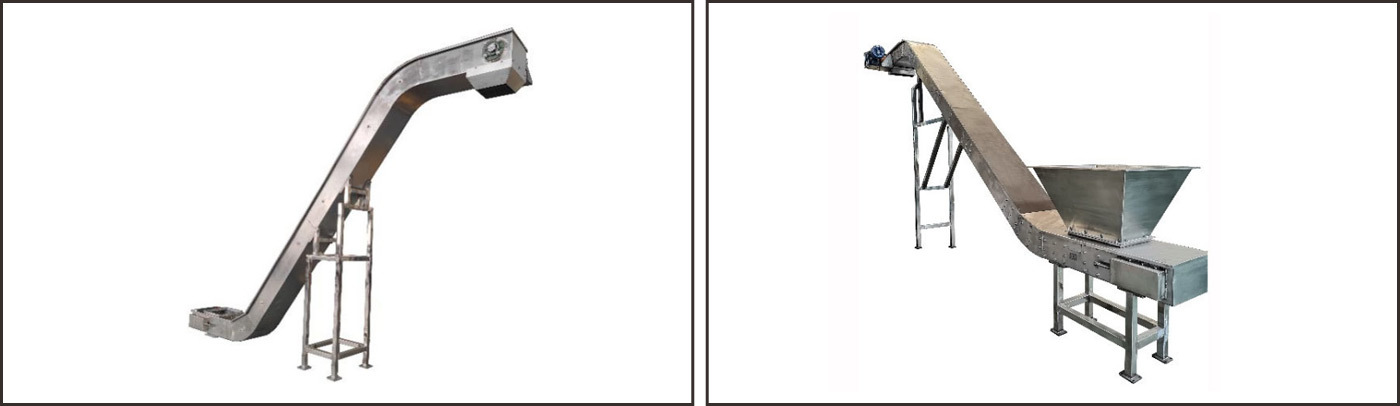

Scraper conveyor

A scraper conveyor is a material transportation device utilizing a continuous, driven chain circuit equipped with regularly spaced cross members. The chain travels through a channel or trough which prevents the transported materials from falling off the conveyor, while the cross members, also named scraping plate/blade, drag or “scrape” them forward to the discharge point. It is also called drag chain conveyor. The design is ideal for slower transportation speeds over short distances, on moderate inclines. The compact and versatile design allows scrape conveyors to fit almost any plant layout.

keywords:

Product Categories

Chain Conveyor

Email：

WhatsApp：

Visits:

Introduction

A scraper conveyor is a material transportation device utilizing a continuous, driven chain circuit equipped with regularly spaced cross members. The chain travels through a channel or trough which prevents the transported materials from falling off the conveyor, while the cross members, also named scraping plate/blade, drag or “scrape” them forward to the discharge point. It is also called drag chain conveyor.
The design is ideal for slower transportation speeds over short distances, on moderate inclines. The compact and versatile design allows scrape conveyors to fit almost any plant layout.
This type of conveyor is typically more cost effective to install and maintain than a belt conveyor of similar capacity and length. Scraper conveyor can less damage the original shape and state of the material, compared with screw conveyor.

Teconway Scrape Conveyor Product Range:
Main structure material: SUS304 stainless steel
Conveying Volume: usually less than 35m³/H.
It also can be customized according to needs.
Used for conveying: municipal sludge, garbage, industrial sludge, corrosive material bulk material, food raw material, chemical agent bulk material, and the like.

Scraper Conveyor Technical Parameters
Model Type	Scraping Plate Width	Conveying Capacity	Power	Revolving Speed	Chain Pitch	Inclined Angle
Model Type	mm	m³/h	Kw	r/min	mm	°
TGB200	200	1.0～2.0	2.2～3.0	15～30	38.1/50.8	0～45°
TGB250	250	2.0～4.0	3.0～4.0	15～30	50.8	0～45°
TGB300	300	4.0～8.0	4.0～5.5	15～30	63.5	0～45°
TGB350	350	8.0～12	5.5～7.5	15～30	63.5	0～45°
TGB400	400	12～20	7.5～11	15～30	76.2	0～45°
1. The motor with different power should be determined according to the working condition, conveyed materials, inclined angle and conveying length and other factors;

2. Teconway will design and manufacture conveyors to suit your specific requirements.

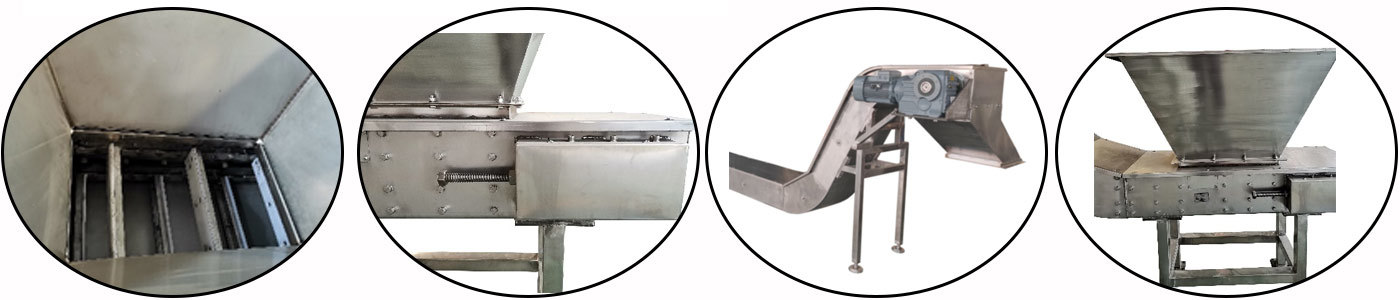

Production details

①Spaced Cross Members
Scarping blade/plate is made of stainless steel and nylon.

②Customized Hopper
Customize the volume as needed
Optional equipped with breaking or stirring mechanism

③ External tensioning device for easy adjusting.

④ Famous brand bearings and Gear Motor
NSK, SKF bearings/ Well-known brand gear motor/ Customer-specified brand
